Today's fractal was supposed to be more art and less theory.
Well, I had good intentions, but I got too involved with that test
formula that I posted yesterday. While noodling around with
it
this evening, I realized that real p3, which moves the displayed slice
along the X-axis, actually determines the axis of rotation.
To
see how this works, simply set real p3 to -0.75 (Seahorse Valley) and
watch the entire figure rotate on the -0.75 axis-line. Real
p2
moves the displayed slice along the Z-axis, and imag p2 moves it along
the W-axis. Imag p3 moves the image along the Y-axis, but
this
does nothing more than shift the position of the images on the screen
This arrangement is still not perfect, since the parallel oblique
slices do not move perpendicularly to the plane being displayed, which
causes the image to shift position on the screen. This can be
corrected by applying a corresponding rotation, but at this time I'm
mentally congested, and since all slices can be displayed as the
formula now stands, I think I'll let the formula rest.
I have re-attached yesterday's formula below, because as Jay Hill
pointed out, my degree conversion factor was a bit off the
mark.
The inaccuracy was very slight, but it did make a difference at the
highest magnifications. When I wrote the formula, I recalled
only
six digits. Being lazy, I filled in the rest with 3's instead
of
looking up the correct value.
Today's formula is a generalization of yesterday's formula to any real
power of Z. I made the bailout a variable because changing
the
bailout has a very significant effect on the appearance of the negative

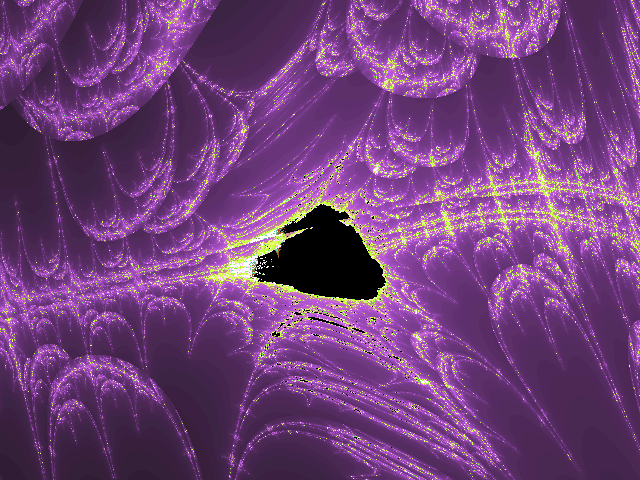

power mandeloids. Today's fractal is a tiny midget on one of
the
infinity of negative tails of the Z^2.002 mandeloid, sliced at an angle
of 75 degrees from the XY direction. I named it "Swirls"
because
of the obvious swirling effect of the bits and pieces of negative tails
around the midget. One word of warning -- don't use today's
formula (XY-YZ-test03) to draw slices of the Z^2 set. It's
less
that half as fast as yesterday's XY-YZ-test02 formula on the Z^2 set.
The finished image has been posted to a.b.p.f. and a.f.p. For
tomorrow, most likely I'll post another odd angle image. I
picked
up enough oblique ideas from Benno's Julibrot web page to keep me busy
for a year.
Jim Muth
jamth@mindspring.com
START 19.6 FILE=============================================
On_a_Crooked_Spike { ; time=0:00:26.47-SF5 on P4-2000
reset=1960 type=formula formulafile=jim.frm float=y
formulaname=XY-YZ-test03 passes=1 center-mag=-0.11\
45278127801932/+0.00909585091588167/2395.932/0.116\
/3.229/63.701716 params=75/2.002/0/0/-1.7545/36
maxiter=3600 inside=0 logmap=yes periodicity=10
colors=000Oh`Ok`NiZMgYLeWKcVJaTI_RHYQGWOFUMESLDPJC\
NIBLGAJE9HD8FB7D96B8596475353332443544655656757868\
969A6AA7BB7CC7DD8EE8FF8GF9HG9IH9JIAKJALJAMKBNLBOMB\
PNCQNCROCSPDTQDUREVSEWSEXTFYUFZVF_WG`WGaXGbYHcZHd_\
He_If`IgaIhbJicJjdJkdKleKmfKngLohLphLqiMrjMsjMskOq\
kPokQnkRlkSjkTikUglVflWdlXblYalZ_l_Yl`XlaVlbTlzSlz\
QlzOmzNmzLmzKmzImzGmzFmzDszLyzSxzRvzPuzOszNrzLqzKo\
zJnzHlzGkzEizDhzCgzAez9dz8bz6az5XzASzENzJzmzzmzzmz\
zmzzmzzmzzmzzmzzmzzmzzmzzmzzmzzmzzmzzmzzzzzzzzzzzz\
zzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzz\
zzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzMpgMofNneNmcOlb\
OkaPj`Pi_QhZQgYRfXSeWSdVTcUTbTUaSU`RV_QVYOWXNWWMXV\
LXUKYTJYSIZRH_QG_PF`OE`NDaMCaLBbKAbJ8cI7cH6dG5dF4e\
E3eD2fC1fB0eD1dE2dF2cG3bH3aJ4aK5`L5_M6ZN6ZO7YP8XQ8\
WR9WS9VUAUVBUWBTXCSYCRZDR_EQ`EPaFObFOdGNeHMfHLgILh\
IKiJRNeRQdQTdQXcP_bPbbOea }
frm:XY-YZ-test03 {; Jim Muth
; real(p1)=rotation angle in degrees,
; imag(p1)=exponent of z
; p2=parallel planes, real(p3)=axis of
; rotation and parallel planes
; imag(p3) = escape radius
z=sin(real(p1)*.01745329251994)*real(pixel)+p2,
c=cos(real(p1)*.01745329251994)*real(pixel)+flip\
(imag(pixel))+real(p3):
z=z^imag(p1)+c,
|z| <= imag(p3) }
END 19.6 FILE===============================================
